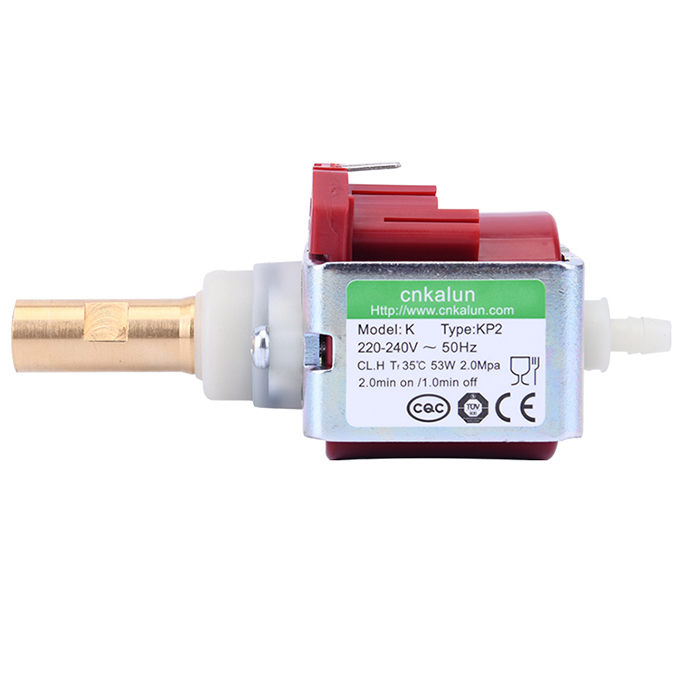

KP2 copper pipe
  • KP2 copper pipe
  • KP2 copper pipe
PRODUCT
SPECIFICATION
产品规格书

PRODUCT SPECIFICATION 产品规格书



  • Quick Details

  • characteristic

  • characteristic paramete

Place of OriginDongguan, Guangdong, China
Brand namekalun
modelKP2 copper pipe
Voltage100-110-120-220-230-240V/50-60HZ
power53W
fluid20℃
normal atmospheric temperatureAt 25℃
ambient temperature>0℃~60℃
Operating mode2 minutes on 1 minute off/continuous operation
Insulation classClass H
Integration (optional)Secondary pipe, R2000 2000v
Integrated (optional) product applicationWater dispensers, refrigeration equipment, coffee makers, medical instruments, mobile air conditioners, cleaning equipment, mold temperature machines
Large flow, low vibration and low noise
Continuous operation, stable flow
Low noise and long service life;
Good sealing, no liquid leakage
Pre installed rectifier and temperature control fuse
With self-priming function.
Maximum pressure20.0Bar
0Bar traffic550ml/min
noise<65dB
lifeMore than 500 hours
Dry pumping functionDo not smoke dry
Installation methodDo not immerse in water
weight415g
Product size122×54×46.8(mm)
